Control Arm Replacement Cost: Parts, Labor & Alignment
Control arm replacement typically costs about $500 to $1,200 for one control arm on a mainstream vehicle in the United States, although some jobs can fall below that range and others can exceed it. Current national repair-estimator data places the average control arm replacement around $800 to $900, but the exact price varies significantly by vehicle, control arm position, parts design, labor time, and whether an alignment or related components are needed.
The most important detail when comparing quotes is the repair scope. A price for one control arm is not directly comparable with a quote that includes both sides, a ball joint, bushings, new hardware, labor, and a wheel alignment.
Control Arm Replacement Cost at a Glance
| Job | Useful U.S. Planning Range | What to Confirm |
|---|---|---|
| Single control arm | About $500–$1,200+ | Position, parts included and labor |
| Economy/mainstream application | About $450–$800 | Aftermarket vs. OEM assembly |
| Higher-cost truck, SUV or premium application | About $900–$1,500+ | Parts price and suspension design |
| Wheel alignment | Often about $80–$200 | Whether it is included in the estimate |
These ranges are for planning rather than fixed quotes. Current U.S. estimates illustrate how much vehicle choice matters: some mainstream cars can remain near $500, while certain trucks, SUVs, and premium applications can exceed $1,000 for a control arm job.

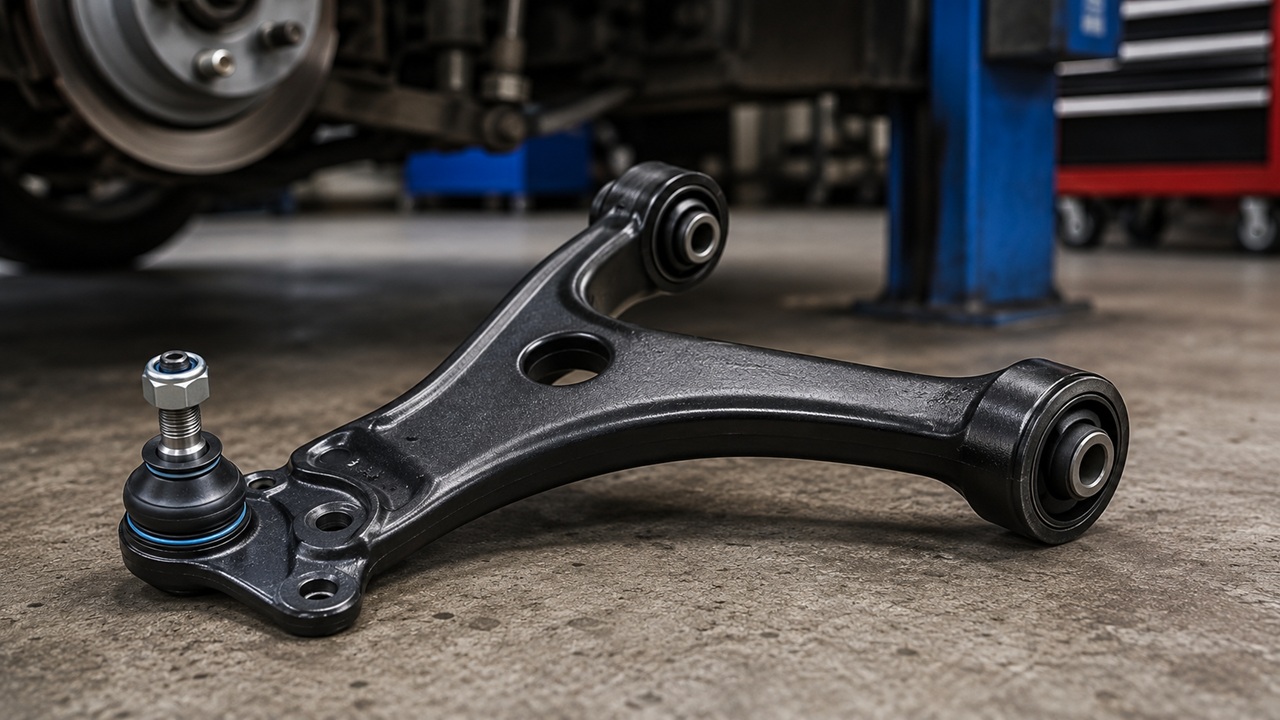

What Does a Control Arm Do?
A control arm connects the wheel or steering-knuckle assembly to the vehicle’s frame or body while allowing the suspension to move up and down. Bushings at the chassis end allow controlled movement, while the outer end commonly connects to the steering knuckle through a ball joint.
This makes the control arm important for both suspension movement and wheel positioning. A bent arm, badly worn bushing, damaged ball joint, or failed mounting point can affect handling, tire wear, alignment, and vehicle stability.
MOOG’s control arm technical guide explains how control arms, bushings, and ball joints work together to locate the wheel while allowing suspension travel.
Why Control Arm Replacement Costs Vary So Much
Control arms are not standardized parts. One vehicle may use a relatively inexpensive stamped-steel arm with replaceable bushings, while another may use a large aluminum assembly with an integrated ball joint and expensive preinstalled bushings.
The main price factors include:
- Vehicle make and model: control arm pricing varies dramatically between compact cars, trucks, SUVs, luxury vehicles, and performance applications.
- Control arm position: front, rear, upper, and lower arms can use different designs and require different labor procedures.
- Complete assembly vs. individual components: some replacement arms include new bushings and a ball joint, while others do not.
- OEM vs. aftermarket parts: original-equipment components can cost substantially more than aftermarket alternatives.
- Labor access: engine mounts, subframes, exhaust components, rusted hardware, or restricted access can make an otherwise simple job much more time-consuming.
- Alignment requirements: disturbing a component that locates the wheel can require the alignment to be checked and adjusted afterward.
Parts vs. Labor
Control arm replacement is unusual because either parts or labor can dominate the bill depending on the vehicle.
Current national estimator data shows an average control arm replacement of roughly $799 to $920, with approximately $575 to $593 attributed to parts and $223 to $328 to labor. That split should not be treated as universal, however. Some vehicles use inexpensive arms with difficult installation procedures, while others use costly assemblies that can be installed relatively quickly.
| Cost Factor | Why It Matters |
|---|---|
| Control arm assembly | Material, design and included components can change the parts cost dramatically |
| Labor | Access, corrosion and suspension layout determine how long replacement takes |
| Bushings | May already be installed in the new control arm or may require separate work |
| Ball joint | May be integrated into the replacement arm or serviced separately |
| Hardware | Corroded, damaged or specified single-use bolts can add cost |
| Alignment | May be required after the repair depending on suspension design and procedure |
Does a New Control Arm Include Bushings and a Ball Joint?
Sometimes. This is one of the most important things to check when comparing control arm prices.
Many replacement control arm assemblies come with the inner bushings already installed. Some also include a new ball joint, mounting hardware, or both. Other designs reuse or separately replace these components. If the diagnosis specifically calls for the joint rather than the complete arm, see our ball joint replacement cost guide.
A complete assembly can therefore cost more than a bare arm but reduce additional parts and labor. It can also make sense when several components on the original assembly are already worn.
Do not assume that a quote for a complete control arm assembly is equivalent to a quote for replacing only a worn bushing. Control arm bushing replacement cost is a separate repair scope and should be evaluated independently.
Do You Replace One Control Arm or Both?
Control arms do not automatically have to be replaced in pairs simply because one has failed. Unlike shocks or struts, there is no universal rule requiring a matching control arm on the opposite side to be replaced at the same time.
The other side should still be inspected carefully because components of the same age and mileage can wear at similar rates. If both arms have deteriorated bushings, damaged ball joints, corrosion, or other defects, replacing both during the same visit may make sense.
If only one arm is damaged—for example after a pothole or impact—and the opposite side remains in good condition, replacing the failed arm alone may be appropriate.
Do You Need an Alignment After Control Arm Replacement?
An alignment should generally be checked after control arm replacement, and many vehicles will require an alignment adjustment after the repair. The control arm helps establish the wheel’s position, and some designs use eccentric bolts or other adjustment points at the arm mounting locations.
The exact requirement depends on the vehicle and the arm being replaced. If alignment cams or adjustable mounting points were disturbed, checking the alignment is especially important.
Before approving the repair, ask whether alignment is included in the quoted total. Our guide to alignment after replacing suspension parts explains why some repairs affect wheel geometry more than others.
Front vs. Rear Control Arm Replacement
Control arms are most commonly discussed as front-suspension components, but many independent rear suspension systems also use multiple control arms or links to position the wheel.
A front control arm often connects directly to the steering knuckle through a ball joint and may have one or more large chassis bushings. Rear suspension designs can use several shorter arms or links controlling different aspects of wheel movement and alignment.
Because the designs are so different, a generic national average cannot tell you whether a front or rear job will be more expensive on your particular vehicle. The exact part number and labor procedure matter more than the word “front” or “rear.”
What About Lower and Upper Control Arms?
Some suspension designs use both upper and lower control arms, while others use only a lower control arm combined with a strut. Trucks, SUVs, performance vehicles, and double-wishbone suspension systems commonly have configurations that differ substantially from typical MacPherson-strut passenger cars.
This guide covers the cost of control arm replacement generally. If your estimate specifically calls for a lower control arm, see our lower control arm replacement cost guide. If it specifically calls for an upper arm, see our upper control arm replacement cost guide for parts, labor, ball joints, bushings, and alignment.
OEM vs. Aftermarket Control Arms
The replacement part selected can make hundreds of dollars of difference in the final invoice.
An OEM control arm is supplied to match the vehicle manufacturer’s original specification and may command a higher price. Aftermarket choices range from inexpensive replacement components to premium assemblies with upgraded bushings, ball joints, hardware, or corrosion protection.
Ask the shop for the manufacturer and part number before comparing estimates. Two quotes that both say “control arm” can involve very different parts.
Also check exactly what is included. A higher-priced arm that already includes bushings and a ball joint may represent better overall value than a cheaper arm requiring those parts and additional labor separately.
Why Some Control Arm Quotes Exceed $1,000
A four-figure quote is not automatically excessive. Current vehicle-specific estimates show that control arm cost varies considerably even among common vehicles.
The bill can rise because of:
- expensive aluminum or OEM control arm assemblies
- integrated bushings and ball joints
- difficult access to inner mounting bolts
- subframe, engine-mount, or exhaust interference
- seized or heavily corroded hardware
- additional worn suspension components
- wheel alignment after installation
- higher dealership or regional labor rates
If your estimate contains several suspension repairs rather than only a control arm, our broader car suspension repair cost guide can help you judge the complete scope of the quote.
Can You Replace Only the Control Arm Bushing?
On some vehicles, yes. A worn control arm does not always mean that the metal arm itself is damaged. The problem may be isolated to one or more rubber bushings.
However, replacing bushings separately can require a hydraulic press, special tools, or substantial additional labor. If a complete replacement arm already includes new bushings—and sometimes a new ball joint—the complete assembly may be more economical despite its higher parts price.
The shop should be able to explain whether the arm itself is bent or damaged, whether only the bushings have failed, and why it recommends replacing the complete assembly rather than servicing an individual component.
What Else May Need Replacement?
Control arm problems can appear alongside wear in other steering and suspension components. During inspection, a technician may find problems with the ball joint, tie rod end, sway bar link, wheel bearing, strut, spring, or other bushings.
Related repairs are not automatically unnecessary, but each one should have a clear diagnosis. Ask the shop to identify which component has excessive play, damage, torn rubber, leakage, or another measurable defect rather than approving a large suspension package based only on mileage.
How to Compare Two Control Arm Replacement Quotes
- Confirm the exact control arm. Check front or rear, left or right, and upper or lower where applicable.
- Check the quantity. Determine whether the quote is for one control arm or both sides.
- Ask what the assembly includes. Bushings and ball joints may already be installed in one quote but charged separately in another.
- Compare the parts. Get the brand and part number so you can distinguish OEM, premium aftermarket, and economy components.
- Check the labor scope. Additional disassembly, corrosion work, or subframe-related labor can explain a higher estimate.
- Look for alignment. Find out whether a post-repair alignment is required and whether it is already included.
- Review additional repairs separately. A ball joint, tie rod, or sway bar link should not disappear inside a vague “suspension repair” line item.
The cheapest total is not necessarily the cheapest equivalent repair. A quote that includes a complete arm assembly, quality parts, necessary hardware, and alignment can legitimately cost more than one covering only a basic control arm.
Can You Drive With a Bad Control Arm?
A control arm problem should not be ignored, especially if the arm is bent, cracked, severely corroded, or allowing significant unwanted wheel movement. The control arm and its joints help locate the wheel, so severe failure can affect steering and vehicle control.
Symptoms such as clunking, wandering, unstable steering, abnormal wheel position, or rapid tire wear deserve prompt inspection. If the vehicle feels noticeably loose or difficult to keep in its lane, our guide to a car that feels loose or wanders while driving covers the broader causes that should be checked.
If a technician finds structural damage or severe play in a safety-critical joint, avoid treating the repair as something that can simply be postponed indefinitely.
Can You Replace a Control Arm Yourself?
Control arm replacement can range from a manageable intermediate DIY repair to a difficult job requiring special equipment.
The vehicle must be safely lifted and supported, suspension loads must be understood, the ball joint must be separated from the steering knuckle correctly, and chassis fasteners must be tightened using the correct procedure and torque specifications.
Some control arm bushings must also be tightened with the suspension at normal ride height rather than hanging at full droop. Incorrect bushing preload can shorten component life.
If the procedure requires a press, removal of major surrounding components, or alignment work you cannot perform or verify, professional replacement is usually the more practical option. Never work underneath a vehicle supported only by a jack.
Frequently Asked Questions
How much does it cost to replace a control arm?
About $500 to $1,200 for one control arm is a useful U.S. planning range, although some mainstream applications cost less and expensive trucks, SUVs, luxury vehicles, or difficult repairs can exceed that amount. Current national estimator data averages roughly $800 to $900.
How much is labor for control arm replacement?
Labor varies substantially by vehicle. Current national estimates put labor around $223 to $328 on an average control arm replacement, but difficult access, corrosion, additional disassembly, and regional labor rates can push the amount higher.
Do control arms need to be replaced in pairs?
Not automatically. The opposite control arm should be inspected because both sides may have similar age and mileage, but a good arm does not generally need replacement solely because the other side has failed.
Does a new control arm include the ball joint?
Some control arm assemblies include a new ball joint and preinstalled bushings, while others do not. Always check the exact part description before comparing estimates.
Do you need an alignment after replacing a control arm?
Alignment should generally be checked after control arm replacement, and many vehicles will require adjustment because the control arm helps position the wheel. The exact requirement depends on the suspension design and repair procedure.
Is replacing a control arm an expensive repair?
It can be. The metal arm itself may not be particularly complex, but some assemblies include expensive bushings and ball joints, while labor can increase when mounting bolts are difficult to access or heavily corroded.
Can a bad control arm cause uneven tire wear?
Yes. A bent arm or badly worn bushings can allow wheel geometry to move away from specification, which can contribute to abnormal tire wear. Tire wear can also have many other suspension, steering, tire, and alignment causes.
Judge the Quote by What Is Actually Included
For most drivers, roughly $500 to $1,200 for one control arm is a useful starting budget, with current national estimates clustering around the $800 to $900 range. But the total alone does not tell you whether a quote is expensive or reasonable.
Confirm which control arm is being replaced, whether the price covers one side or more, whether bushings and the ball joint are included, what brand of part will be installed, and whether alignment is part of the final price. Once those details match, comparing two control arm replacement quotes becomes much more meaningful.
