How to Inflate Lincoln Town Car Air Suspension Safely
A factory-equipped Lincoln Town Car air suspension inflates automatically. You normally do not connect an external compressor, locate a tire-style fill valve, or choose the air pressure yourself. With the air suspension switch turned on, the vehicle’s compressor and control module add or release air to maintain the correct rear ride height.
If the rear of the car is low, the correct first step is to confirm that the air suspension switch is on and allow the automatic leveling system to operate. If the vehicle does not rise, repeatedly cycling the system or forcing compressed air into it can cause additional damage. The fault must be diagnosed instead.
How the Lincoln Town Car Air Suspension Inflates

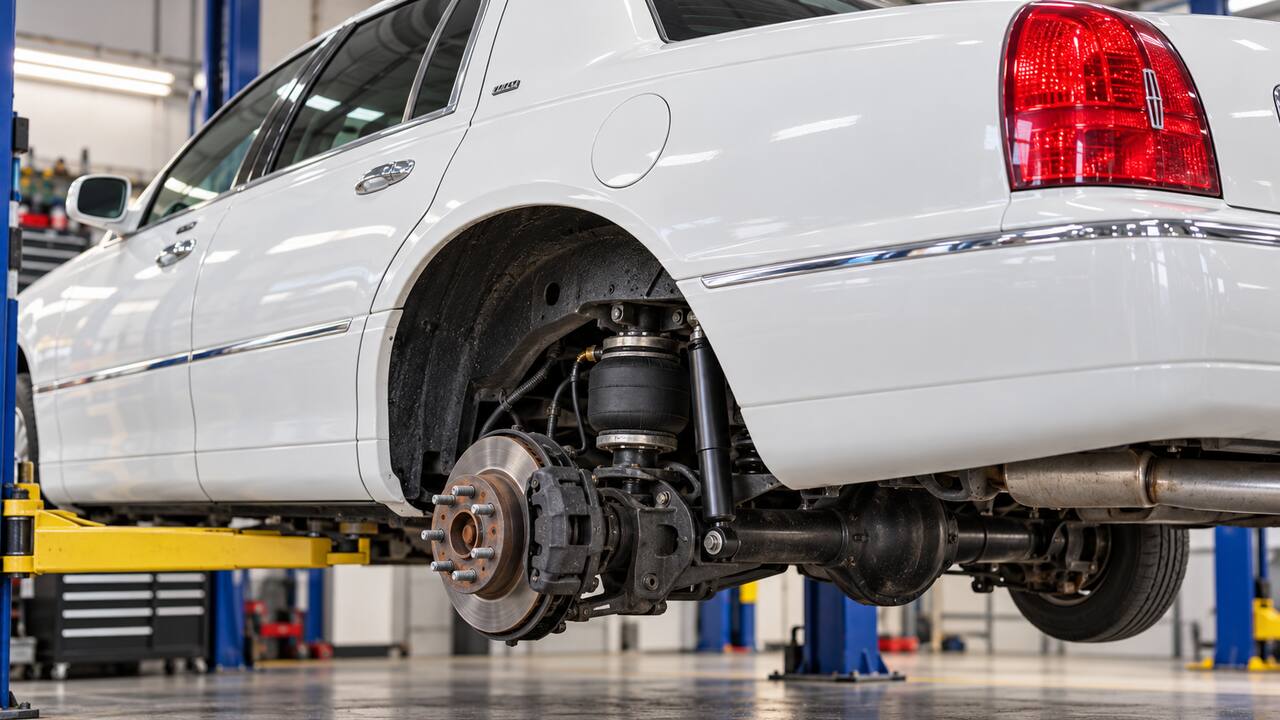

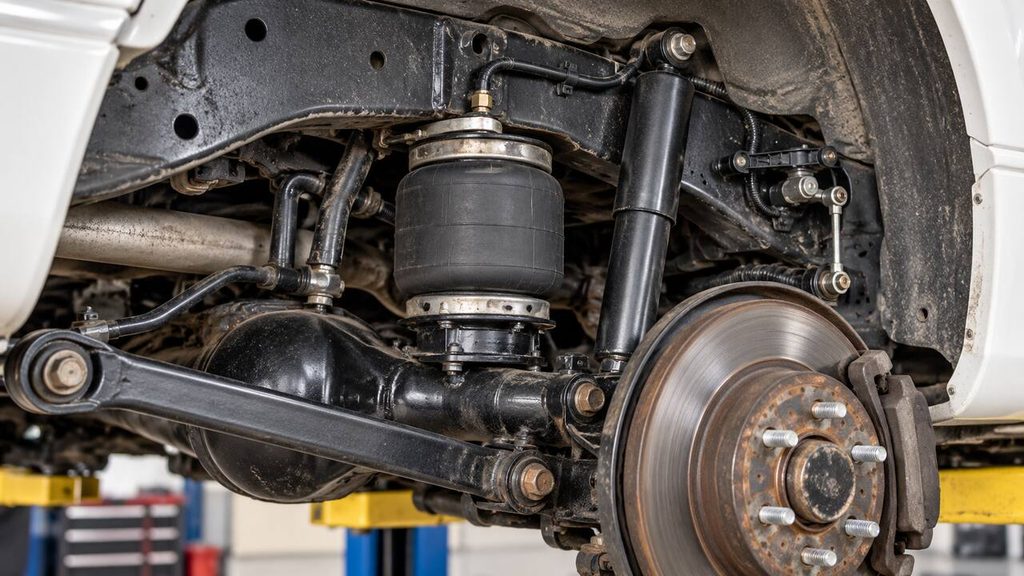

The factory system uses rear air springs instead of conventional rear coil springs. A ride-height sensor detects the position of the vehicle body relative to the rear axle. The suspension control module then operates the compressor and vent solenoid as needed.
- If the rear of the vehicle is too low, the system commands the compressor to add air.
- If the rear is too high, the system releases air to return the car to its target height.
- When passengers or cargo are added or removed, the system compensates automatically within the vehicle’s load limits.
Lincoln’s owner manuals state that normal vehicle operation does not require any action from the driver. This means there is no routine pressure to check or manually adjust as there would be with a tire or an aftermarket air-helper spring.
How to Raise a Low Lincoln Town Car
Use the following procedure only when the vehicle is structurally intact, the air springs are correctly seated, and no part of the body is touching a tire. If an air spring is folded, displaced, torn, or completely collapsed, stop and arrange professional inspection.
1. Park on Firm, Level Ground
Place the transmission in Park, apply the parking brake, and keep people away from the wheel arches and underside of the vehicle. The body may move when the leveling system activates.
2. Check Whether the Car Still Has Factory Air Suspension
Many Town Cars have been converted from rear air springs to conventional coil springs. A converted vehicle will not rise when the original air suspension switch is turned on.
Look behind the rear wheels only from a safe position. Factory-style air springs resemble reinforced rubber bellows. Conventional conversions use visible steel coil springs. If you cannot identify the system safely, ask a technician to inspect it.
3. Turn On the Air Suspension Switch
On many later Lincoln Town Cars, the air suspension shut-off switch is behind the trim panel on the left side of the trunk. Earlier model years may use a different location; for example, some manuals identify the right-hand trunk trim panel. Check the owner’s manual for the exact model year.
Move the switch to the ON position. If it is off, the automatic rear-leveling system cannot operate and the instrument panel may display a suspension warning.
4. Close the Doors and Trunk
Close the doors and trunk so the system can complete its normal leveling sequence without interruption. Keep hands, tools, and body parts away from the suspension and wheel openings.
5. Start the Engine and Let the System Level the Car
Start the engine and allow the automatic system to operate. You may hear the compressor while it raises the rear suspension. The final ride height and operating time vary by model and vehicle condition, so do not use an unofficial universal measurement or runtime.
Do not repeatedly turn the ignition or suspension switch on and off to force additional compressor cycles. If the car does not rise normally, continued operation can overheat an already weak compressor.
6. Confirm That the Vehicle Is Level
Once the compressor stops, view the vehicle from a safe distance on level ground. The rear should be reasonably even from side to side and should provide normal tire and body clearance.
A precise ride-height diagnosis requires the measurement points and specifications for the exact model year. Do not adjust or bend the height-sensor linkage to change the stance without the correct service procedure.
Where Is the Lincoln Town Car Air Suspension Switch?
The switch location depends on the model year:
- Many 1999–2011 Town Cars: Behind the trim on the left side of the trunk.
- Some earlier Town Cars: Behind the right-hand vertical trunk trim panel.
Use the manual for the exact year rather than assuming that every Town Car has the same layout. The switch is a system shut-off control, not an inflation button. Turning it on permits automatic leveling; it does not directly command the compressor to run.
When Should the Air Suspension Switch Be Turned Off?
Turn the air suspension switch off before jacking, hoisting, or towing a Town Car equipped with rear air suspension. This prevents the automatic leveling system from moving the body unexpectedly while the wheels or axle are unsupported.
Lincoln includes this warning in its owner manuals. After the vehicle has been lowered safely onto the ground and the work is complete, return the switch to the on position before normal operation.
The official 2008 Lincoln Town Car Owner’s Guide, for example, explains that the system automatically adds or releases air and places the shut-off switch on the left side of the trunk.
Can You Manually Inflate the Factory Air Springs?
The original Town Car system is not designed for routine manual inflation by the owner. The factory owner’s procedure does not describe a tire-style fill valve near the license plate or instruct the driver to connect an external compressor.
Some owners or repair shops install aftermarket fittings to fill the air springs from an external source. That is a modification, not a standard Lincoln feature. Applying unregulated shop air or connecting to an unidentified fitting can overpressurize an air spring, damage a valve, introduce moisture, or cause sudden vehicle movement.
If a service procedure requires the system to be pressurized externally, it should be performed with pressure-rated equipment, the correct adapters, and the model-specific pressure limits. It is not a safe substitute for repairing a failed compressor, leaking spring, damaged line, or control-system fault.
Why Won’t the Town Car Air Suspension Inflate?
| Symptom | Possible cause | Best next check |
|---|---|---|
| Rear remains low and compressor is silent | Switch off, blown fuse, relay fault, wiring problem, control fault, or failed compressor | Switch position, suspension fault codes, and model-specific electrical diagnosis |
| Compressor runs for a long time | Air leak, weak compressor, restricted dryer, or damaged air line | Stop repeated cycling and inspect the system for leaks |
| One rear corner is lower | Leaking or damaged air spring, line, seal, or seating problem | Inspect the affected side and test for leakage |
| Car rises but sinks after parking | Air spring, line, fitting, solenoid, or valve leak | Perform a controlled leak test |
| “Check Air Suspension” warning appears | Switch off or a fault detected by the suspension module | Confirm the switch position and scan the suspension control module |
| Compressor is loud or overheats | Internal wear or excessive operation caused by a leak | Test compressor output and diagnose the reason for overuse |
Check the Air Suspension Switch First
If the switch was left off after a tire change, towing, or repair, return the vehicle to level ground before turning it on. Then allow the automatic system to operate normally.
If the switch is already on and the car remains low, switching it repeatedly is unlikely to solve the problem. The system needs diagnosis.
Check for an Air Leak
A leaking rear air spring is a common reason for a Town Car to sink while parked. Rubber bellows can develop cracks in their folds, particularly as they age. Lines, seals, and spring solenoids can also leak.
A leak forces the compressor to run more often and can eventually destroy it. Our air suspension leak diagnosis guide explains safe external checks and when pressurized testing should be left to a professional.
Test the Compressor and Electrical Circuit
If the compressor does not run, the cause could be the switch, fuse, relay, power supply, ground, control signal, thermal protection, or compressor motor. If it runs but cannot raise the car, it may be weak—or air may be escaping as quickly as it is produced.
Do not replace the compressor based only on a low rear suspension. Follow the diagnostic order in our air suspension compressor testing guide.
Do All Lincoln Town Cars Have Air Suspension?
Equipment varies by year and specification, and many surviving Town Cars have been modified. Even when a vehicle originally had rear air suspension, a previous owner may have installed a coil-spring conversion.
Check the exact vehicle by inspecting the rear suspension safely, reviewing its service history, and consulting the owner’s manual or build information. The presence of an air suspension switch does not guarantee that the original pneumatic components are still installed.
Can You Drive With the Rear Suspension Down?
Do not drive if the body is close to or touching a tire, the air spring is displaced, the rear is severely uneven, or the vehicle handles unpredictably. Driving in this condition can damage tires, air springs, shocks, exhaust components, and other parts.
A flatbed tow is the safer option for a severely collapsed vehicle. Tell the towing operator that the car has air suspension, and turn the suspension switch off before the vehicle is raised or transported as directed by the owner’s manual.
Frequently Asked Questions
How do I inflate the air suspension on a Lincoln Town Car?
Park on level ground, confirm that the car still has factory rear air suspension, turn the trunk-mounted suspension switch on, close the doors and trunk, start the engine, and allow the automatic leveling system to operate. If it does not rise, diagnose the fault rather than adding external compressed air.
Is there a manual air-fill valve on a Lincoln Town Car?
The factory owner’s procedure does not identify a manual tire-style fill valve. A visible fill fitting may be part of an aftermarket modification and should not be used until its design and safe pressure limits have been confirmed.
Why does my Town Car rise after I start it?
The ride-height sensor has detected that the rear is below its target position, so the control module operates the compressor and adds air. A small correction after a load change may be normal. Frequent or prolonged corrections can indicate a leak.
Why does my Lincoln Town Car sink overnight?
An overnight drop usually points to air escaping from a spring, seal, line, solenoid, or another pneumatic component. One low side often helps identify the affected circuit, although proper leak testing is still required.
Should the air suspension switch always be on?
It should normally be on during regular vehicle operation. Turn it off before jacking, hoisting, or towing the vehicle, then return it to the on position after the car is safely back on the ground.
How much pressure goes into Town Car air springs?
The driver does not normally set a pressure. The automatic system controls air according to ride height and load. Service pressures and test procedures vary by model year and should come from the correct workshop information.
Let the Factory System Control the Ride Height
A working Lincoln Town Car air suspension needs no routine manual inflation. Turn the system on for normal operation, switch it off before lifting or towing, and let the compressor and control module maintain the rear height automatically.
If the rear remains low, find the leak, electrical fault, sensor problem, or weak compressor before replacing parts. Forcing air into the system may temporarily raise the car, but it does not repair the underlying failure and can create additional safety risks.
