How to Troubleshoot Mercedes AIRMATIC Suspension

To troubleshoot Mercedes AIRMATIC suspension, begin by reading the suspension control module for fault codes with a Mercedes-compatible diagnostic scanner. Then inspect the vehicle’s ride height, air springs, lines, compressor, valve block and level sensors according to the symptoms you observe.

A Mercedes that sinks at one corner usually points to a leak near that air spring or strut. If the entire vehicle is slow to rise, the problem may involve a major air leak, compressor, fuse, relay, valve block or electrical supply. Accurate diagnosis is important because replacing the compressor will not fix a leaking air spring—and the leak may eventually damage the new compressor.

AIRMATIC Troubleshooting at a Glance

Symptom	Likely areas to inspect
One corner sinks while parked	Air spring or strut, connection, air line or valve block
Front or rear axle sits low	Multiple air springs, shared air line, valve block or level sensor
Entire vehicle will not rise	Major leak, compressor, fuse, relay, wiring or control fault
Vehicle rises very slowly	Weak compressor, restricted intake, leak or low system pressure
Compressor runs frequently	Air leak, weak compressor or incorrect level-sensor information
Vehicle sits too high or unevenly	Level sensor, sensor linkage, valve block or calibration problem
AIRMATIC warning appears	Read the suspension module’s stored fault codes before replacing parts
Ride is excessively bouncy	Damper or strut fault; not necessarily an air-pressure problem

Before Troubleshooting: Important Safety Precautions

Air suspension can change vehicle height automatically, even when you are not expecting it. Never work underneath a Mercedes supported only by its AIRMATIC system or a hydraulic jack.

• Park on firm, level ground and apply the parking brake.
• Use correctly positioned jack stands or a suitable vehicle lift before working underneath the car.
• Follow the lifting or jack mode instructions for your exact Mercedes model, if applicable.
• Do not disconnect a pressurized air line or air spring.
• Use the model-specific Mercedes procedure and appropriate diagnostic equipment when depressurizing, filling or calibrating the system.

If the body is resting close to a tire, the car is unstable, or the dashboard displays a red stop warning, do not continue driving. Have the vehicle transported to a qualified repair facility.

How to Troubleshoot Mercedes AIRMATIC Suspension

1. Record Exactly What the Vehicle Is Doing

Start with the symptom rather than assuming that the compressor or air springs have failed. Park the car on level ground and compare the height at all four wheel arches.

• Is only one corner lower?
• Is an entire axle low?
• Does the vehicle sink only after several hours or overnight?
• Does it rise after starting but sink again when parked?
• Does the compressor run frequently, run loudly or fail to operate?
• Did the problem begin after suspension work, a weak battery or extremely cold weather?

Measure from the center of each wheel to a consistent point on the wheel arch and write down the results. Avoid measuring from the ground because differences in tire pressure can affect the reading.

2. Scan the AIRMATIC Control Module

A basic engine-code reader may not communicate with the suspension system. Use Mercedes XENTRY/STAR diagnostic equipment or a capable aftermarket scanner that can access the AIRMATIC or AIR BODY CONTROL module.

Record all current and stored diagnostic trouble codes before clearing anything. The scanner may reveal faults related to:

• Compressor activation or excessive filling time
• Compressed-air distribution leaks
• Ride-height sensor signals outside their permitted range
• Pressure-relief valve or valve-block operation
• Electrical supply, wiring or control-module communication

Fault codes identify the circuit or system that needs testing; they do not always prove that the named component must be replaced.

3. Check Battery Voltage, Fuses and Relays

AIRMATIC depends on a healthy electrical supply. Low battery voltage can produce warning messages, interrupt height adjustment or create misleading fault codes.

• Check the condition and voltage of the 12-volt battery.
• Confirm that the charging system is operating correctly.
• Inspect the applicable compressor fuse and relay using the fuse chart for the exact model and year.
• Do not replace a blown fuse repeatedly without finding why it failed.

A blown high-current compressor fuse may be caused by a failing compressor, damaged wiring or excessive current draw. Mercedes has also documented model-specific cases in which moisture can affect compressor operation in freezing conditions, so diagnosis must account for the vehicle’s model, fault codes and operating conditions.

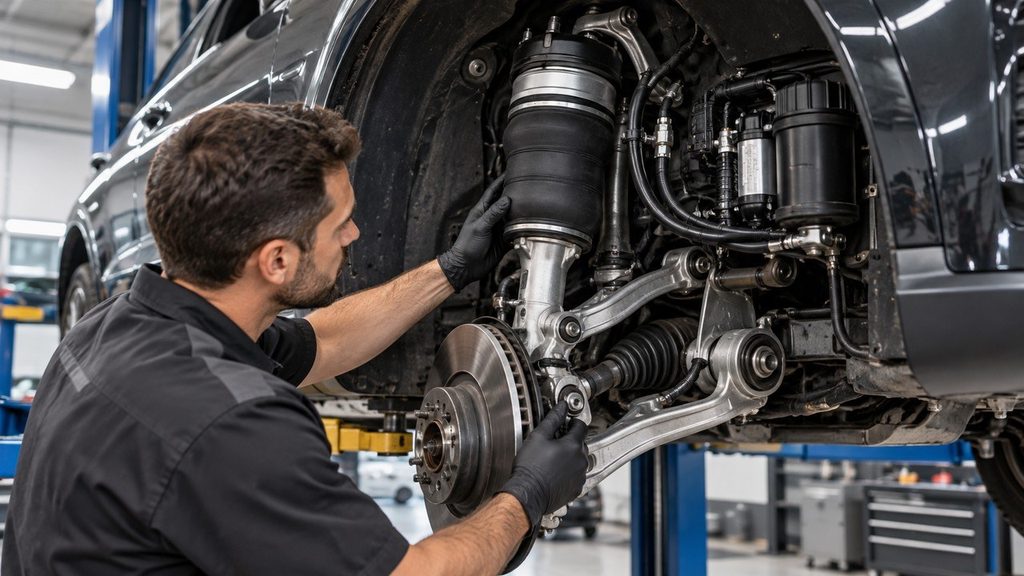

4. Inspect the Air Springs, Struts and Lines

Visually inspect every accessible air spring or air strut, air-line connection and section of pneumatic tubing. Look for:

• Cracked, folded or deteriorated rubber
• Damage where an air spring rolls over itself
• Loose or damaged line connections
• Lines rubbing against nearby components
• Corrosion, impact damage or signs of previous repairs

A leak can be intermittent and may occur only at a particular ride height or suspension position. If one corner repeatedly sinks while the others remain level, inspect that corner first instead of immediately condemning the compressor.

5. Test for Air Leaks

With the system safely pressurized and the vehicle properly supported, an approved leak-detection solution can be applied externally to accessible air-line fittings and suspected leak areas. Growing bubbles indicate escaping air.

Do not attempt to patch a damaged air spring. A leaking air spring or air strut normally requires replacement with a part confirmed for the exact chassis and suspension specification. Our separate air suspension leak diagnosis guide explains how to distinguish common leak symptoms without duplicating the complete Mercedes AIRMATIC diagnostic process covered here.

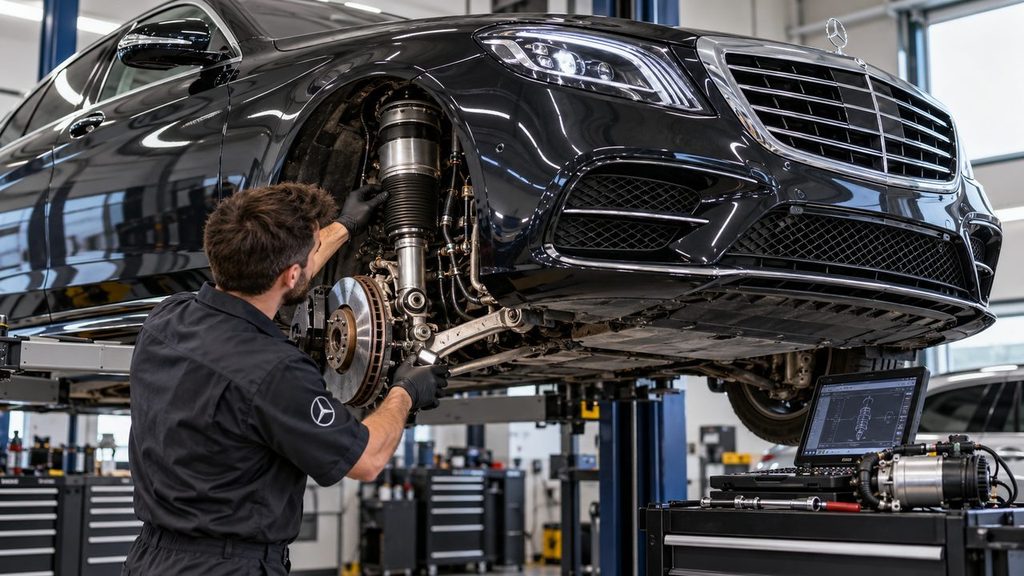

6. Test the AIRMATIC Compressor Correctly

First determine whether the compressor is being commanded to run. A Mercedes-compatible scanner can activate the compressor and display relevant live data on supported models.

• If it is commanded on but remains silent, test its loaded power supply, ground, fuse, relay and wiring.
• If it runs loudly or takes too long to raise the vehicle, check for leaks before replacing it.
• If it runs repeatedly, a leak may be forcing it to replenish lost pressure.
• If power and ground are correct but the compressor cannot generate the required pressure, the compressor may be worn or damaged.

There is no single pressure or filling-time specification that applies to every Mercedes AIRMATIC system. Compare pressure, current draw and filling time with the service information for the exact chassis. See our guide to testing a potentially faulty air suspension compressor for a closer look at compressor-specific symptoms.

7. Check Ride-Height Sensors and Linkages

Ride-height sensors tell the control module where the body sits relative to the suspension. A disconnected, bent or incorrectly installed sensor linkage can make the module believe the vehicle is too high or too low.

• Inspect each sensor and linkage for damage, corrosion or disconnection.
• Confirm that the linkages were installed correctly after previous suspension work.
• Use scan-tool live data to compare the reported height values.
• Look for a value that is implausible or does not change smoothly as expected.

Do not apply universal resistance or voltage specifications found online. Sensor types and expected values vary by Mercedes chassis.

8. Evaluate the Valve Block

The valve block directs compressed air to the appropriate air springs. An internal leak or sticking valve may cause one corner or axle to lose height, prevent correct leveling or transfer air incorrectly.

Valve-block symptoms can resemble a leaking air spring. Use the stored fault codes, parked-height measurements, external leak inspection and model-specific pneumatic tests before replacing it. Do not randomly disconnect or interchange pressurized lines.

9. Repair the Root Cause Before Calibrating

Replacing parts should be followed by the service procedure specified for that Mercedes model. Depending on the repair, a capable diagnostic system may be needed to:

• Fill or vent the pneumatic system safely
• Command the compressor or individual valves
• Set the vehicle to its specified reference height
• Calibrate ride-height sensor values
• Clear codes and verify that they do not return

AIRMATIC is not “bled” like a hydraulic brake system by simply raising and lowering the vehicle. Filling, venting and calibration procedures differ by chassis and should follow Mercedes service instructions.

Can You Reset AIRMATIC to Fix the Problem?

Switching the ignition off, disconnecting the battery or clearing codes may temporarily remove a warning, but it will not repair a leaking air spring, weak compressor, faulty valve block or damaged sensor.

A reset is useful only when it forms part of the correct diagnostic or calibration procedure. If a fault code returns, diagnose its cause rather than repeatedly clearing it. Owners working on an older S-Class can consult our separate 2007 Mercedes S550 AIRMATIC reset guide, which addresses that model-specific search intent.

Can You Drive With an AIRMATIC Fault?

It depends on the severity of the fault. A minor warning with normal ride height may allow a cautious trip to a repair facility, but continuing to drive can worsen an air leak or overwork the compressor.

Stop driving and arrange recovery if:

• The dashboard tells you to stop because the vehicle is too low.
• A tire is rubbing against the body.
• The vehicle leans severely or feels unstable.
• The suspension has collapsed or cannot maintain safe ride height.
• The compressor runs continuously or smells overheated.

Frequently Asked Questions

Why does my Mercedes sink overnight?

A corner that sinks overnight commonly indicates air escaping from an air spring, air strut, line connection or valve block. Measure all four corners before and after parking to identify the affected area. Temperature changes can influence vehicle height slightly, so repeat the comparison under similar conditions.

Why is my AIRMATIC compressor constantly running?

The system may be compensating for a leak, or the compressor may be too weak to build pressure efficiently. Continued operation can overheat and damage it, so find the cause rather than replacing only the compressor.

Can a weak battery cause an AIRMATIC warning?

Yes. Low system voltage can interfere with control modules and high-current components such as the compressor. Test the battery and charging system, but do not assume voltage is the only problem if suspension fault codes or abnormal ride height remain.

Does one low corner always mean a bad air strut?

No. The air spring or strut is a common cause, but the leak may also be at its fitting, air line or valve block. Inspect and test before purchasing parts.

Do I need Mercedes STAR or XENTRY to diagnose AIRMATIC?

Basic visual and external leak checks can be performed without it, but complete diagnosis often requires XENTRY/STAR or an aftermarket scanner capable of accessing Mercedes suspension codes, live height data and component activation tests.

Getting an Accurate AIRMATIC Diagnosis

The most efficient diagnostic order is to record the symptom, scan the suspension module, verify electrical supply, inspect for leaks and then test the compressor, sensors and valve block. This prevents expensive guesswork and helps identify whether one failed component has placed additional strain on another.

Because AIRMATIC layouts, specifications and service procedures vary across Mercedes models and chassis generations, confirm all component locations, pressure tests and calibration steps using the correct service information for the vehicle. Mercedes technical bulletins also show why stored fault codes and model-specific diagnosis are essential when investigating an AIRMATIC warning or incorrect ride height.

Technical reference: Mercedes-Benz AIRMATIC fault diagnostic bulletin published by NHTSA.
